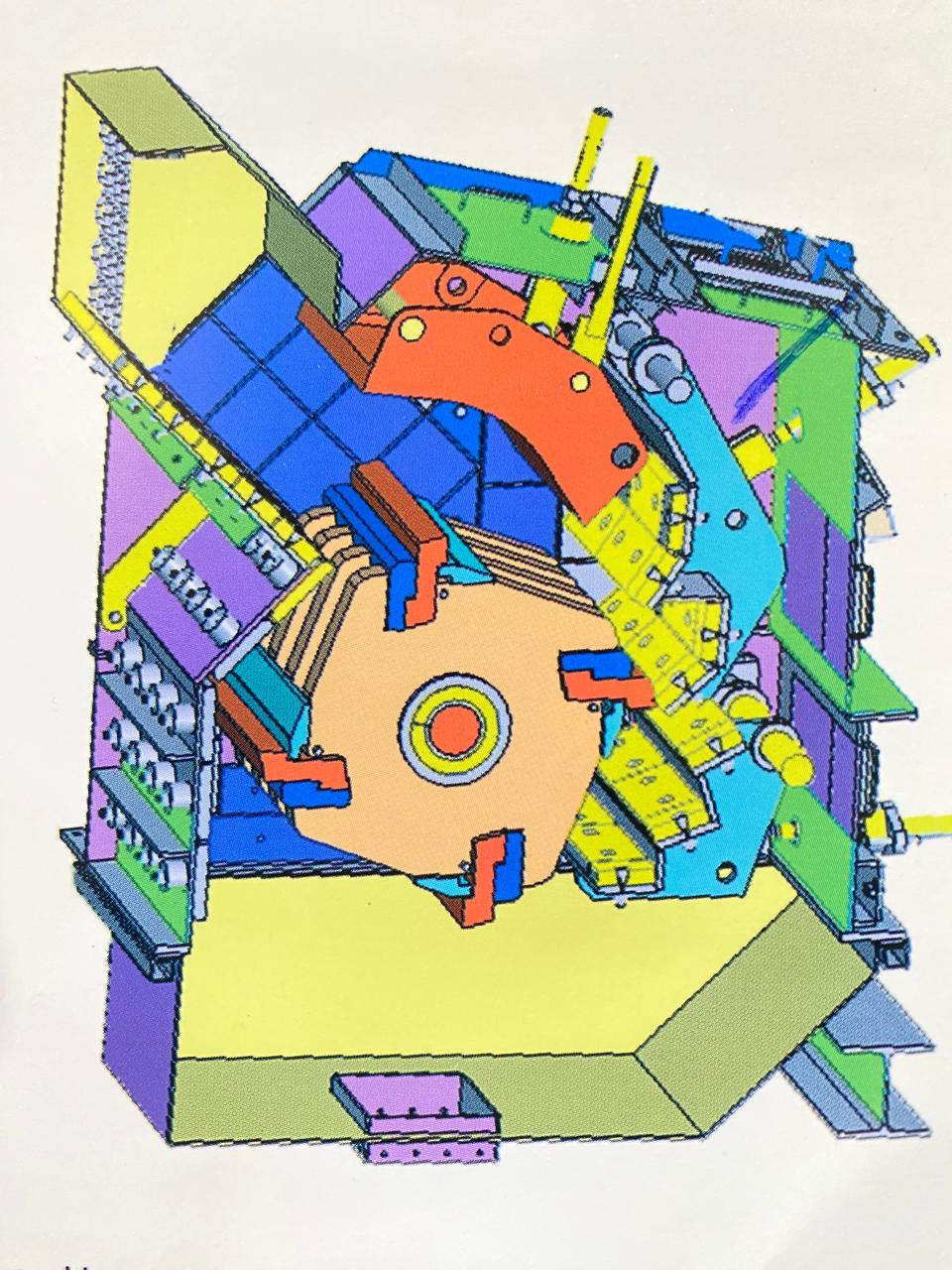

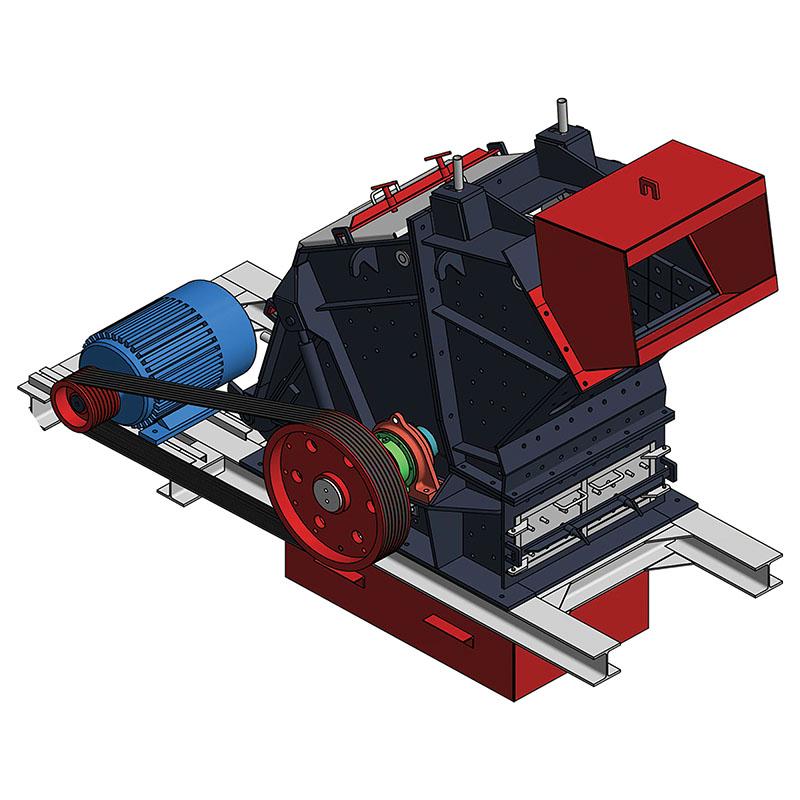

The impact crushers series H.S. are modern economical, heavy duty reduction machines. They are employed for secondary crushing with feed sizes up to 30 cm and capacities from 80 to 300 TPH. The H.S. series is equipped with a third impact anvil, which will increase the reduction ratio and the percentage of cubical shaped product.
Benefits :
* High ratio of reduction compared to compression type crushing.
More cubical product than compression type crushers.
* High degree of product size control.
Long life of wear components
A Easy maintenance thru inspection doors or by A hydraulically opened chamber.
| Model | Max feed size (mm) | Output materials (mm) | Capacity (ton/h) | Power required (hp) | Weight approx (kg) |
| H.S 7 | 150 - 250 | 1 - 30 | 70 - 100 | 100 | 8500 |
| H.S 10 | 200 - 300 | 1 - 30 | 130 - 180 | 125 - 150 | 15500 |
| H.S 11 | 200 - 300 | 1 - 30 | 140 - 190 | 150 | 16000 |
| H.S 14 | 200 - 300 | 1 - 30 | 200 - 250 | 185 - 225 | 19500 |
| H.S 16 | 200 - 300 | 1 - 40 | 200 - 300 | 250 | 26000 |
